630DT17
TECHNICAL PARAMETERS
| n=960 min-1 |
| Pump Type | Q
l/s | H
m | P
kW |
| 630DT17 | 450-850 | 22– 9 | 160
132
110 |

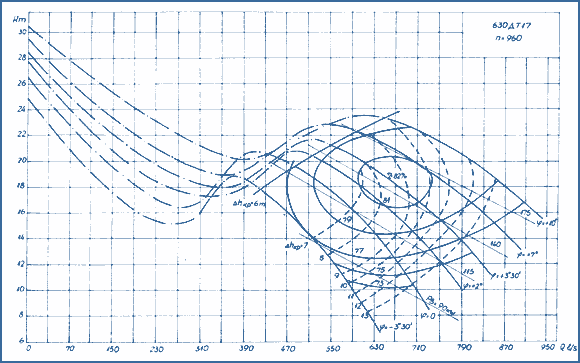

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPSections
(Long 1= 1600) | Sections
(Short 1= 1100) | LC, mm | Pump mass, kg | 1 | - | 2618 | 1200 | 1 | 1 | 3718 | 1500 | 2 | - | 4218 | 1600 | 2 | 1 | 5318 | 1900 | 3 | - | 5818 | 2000 | 3 | 1 | 6918 | 2300 | 4 | - | 7418 | 2400 | 4 | 1 | 8518 | 2700 |
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT Dy
( А) | D1
( А) | D
( А) | Dy
( В) | D1
( В) | D
( В) | Blades fixing angle in degr. | Power, kW | LD | LA | LB | Minimum submersion, mm | 500 | 940 | 1000 | 500 | 600 | 645 | -3°30, 0°
+2°, +3°30
+7°, +10° | 132
160
200 | - | 630 | 1018 | 800 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
