Single-Stage Pumps
description drawings diagrams technical data

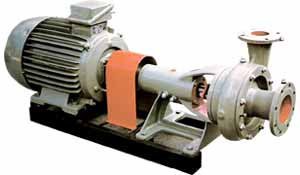

E       Centrifugal horizontal single-stage one-entry pumps type E and E-M with tangential fluid outlet are designed for transferring water and other liquids free from mechanical impurities with viscosity and chemical activity close to viscosity and activity of water with temperatures not higher than 80°C.
      Pump is driven by three-phase induction motor, 380V, 50 Hz. Depending on customer's requirements pumps can be complete with other types of electric motors.
      E-M pumps are monoblock pumps assembled on the shaft of the electric motor. The choice between packing seal or mechanical seal is made depending on the type of the transferred liquid. In case there are mechanical impurities in the transferred liquid clear water is fed into the mechanical seal pocket.


      The indication of the pumps includes the following symbols:
6E32A-MS-01; 6E32A-M-MS-01
6 - Nominal flow l/s
E - Single-stage
32 - Total head at nominal flow m.w.cl.
A (B, C, D,) - variant with reduced impeller diameter
MS - Mechanical seal version (if this indication misses the pump is with gland seal version)
M - mono-block version
01 - construction materials version

The material of the basic parts of the pump according to the different versions.

Detail Construction materials
Standard 01 02
Suction body Cast iron Bronze Stainless steel
Discharge body Cast iron Bronze Stainless steel
Dapper screw-nut Cast iron Bronze Stainless steel
Impeller Cast iron Bronze Stainless steel
Packing ring Cast iron Bronze Stainless steel
Sealing ring Cast iron Bronze Stainless steel
Sealing flange Cast iron Bronze Stainless steel
Mechanical seal Ceramics/ Graphite/ Stainless steel/ Viton
Safety sleeve Steel Chrome 13% Stainless steel
Bearing body Cast iron
Bearing cap Cast iron
Shaft Carbon steel Steel Chrome 13% Stainless steel
"O"-Ring Butyl rubber
Soft packing Cotton PTFE (Teflon)
Indication of materials
