630DT17


TECHNICAL PARAMETERS

n=730 min-1

Pump TypeQ
l/s
H
m
P
kW
630DT17

275-570

18.5.2005

55
75
90

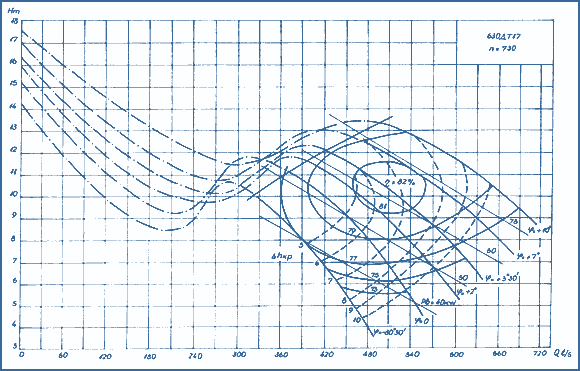

PERFORMANCE CURVES
performance curves


OVERALL AND MOUNTING DIMENSIONS OF THE PUMP
Sections
(Long 1= 1600)
Sections
(Short 1= 1100)
LC, mmPump mass, kg

1

-

2618

1200

1

1

3718

1500

2

-

4218

1600

2

1

5318

1900

3

-

5818

2000

3

1

6918

2300

4

-

7418

2400

4

1

8518

2700


OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT
Dy
( А)
D1
( А)
D
( А)
Dy
( В)
D1
( В)
D
( В)
Blades fixing angle in degr.Power, kWLDLALBMinimum submersion, mm

500

940

1000

500

600

645

-3°30, 0°
+2°, +3°30
+7°, +10°

55
75
90

2247
2298
-

630

1018

800



DIMENSIONAL DRAWING OF THE PUMP UNIT
overall and mounting dimensions
