Submersible Pumps :: Pipe Pumps, DT

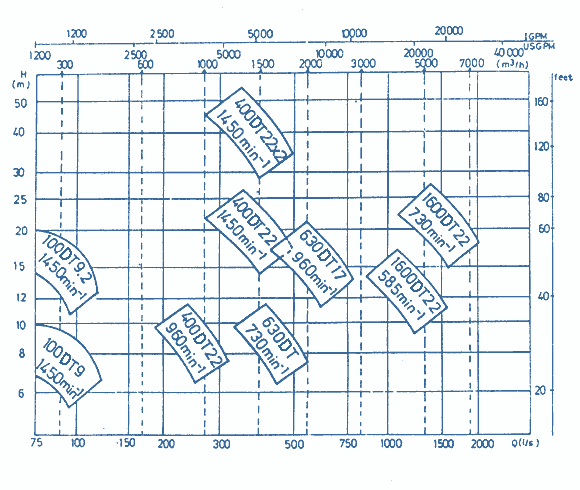

| Q-H Diagrams Of Pumps, DT |
|
|
The technical parameters of pumps (H,Q,η,P,NPSH) and the performance curves refer to:
1.Water temperature: 20°C 2.Pressure: 735,5 mm Hg 3.Cinematic viscosity: ν=1·10-6 m²/s (cSt) |
