description drawings diagrams technical data

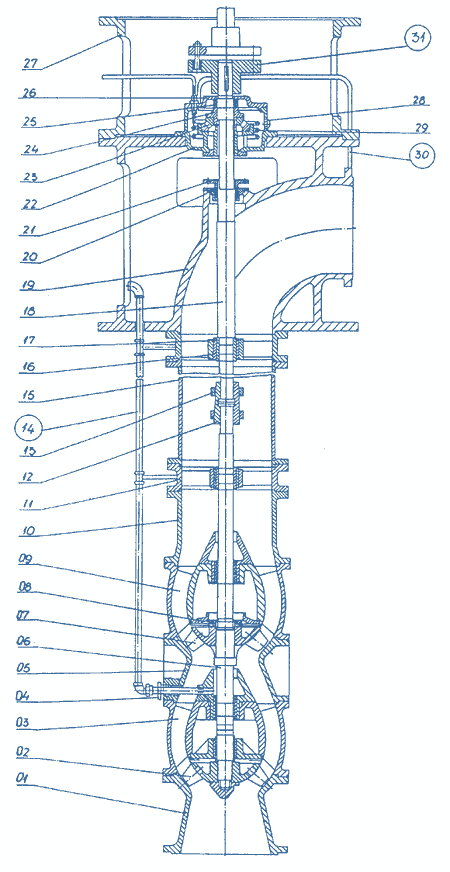

Sectional Drawing, DT
  1. Suction body
  2. Impeller
  3. Guide body
  4. Nipple
  5. Conic bearing body
  6. Bottom shaft
  7. Impellor of a second stage
  8. Nut
  9. Guide body second stage
  10. Body intermediate
  11. Bearing body
  12. Connecting sleeve
  13. Upper ring
  14. Pipe system
  15. Intermediate pipe
  16. Bearing sleeve
  17. Protective sleeve
  18. Upper shaft
  19. Ell
  20. Stuffing box
  21. Stuffing box flange
  22. Cooling cavity
  23. Thrust bearing radial roller
  24. An abutment sleeve
  25. Circular screw-nut
  26. Cap
  27. Intermediate shield
  28. Oil indicator
  29. Coil pipe
  30. Pipe system
  31. Coupling
Sectional Drawing, DT
