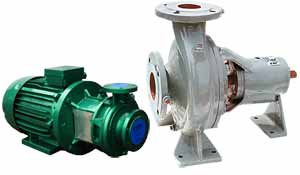

Horizontal centrifugal single-stage pumps type E, ET, KEM are designed for transferring drinking water and other liquids free from mechanical impurities and similar to water in viscosity and chemical activity. Pumps can be complete with motors of various voltage and degrees of protection depending on the customer's request.
      According to design features and sphere of application pumps can be divided into following groups:

E - pumps are designed for transferring liquids with temperatures up to 85°C. Can be complete with stuffing box seal or mechanical seal. ET - pumps are designed for transferring liquids with temperatures up to 140°C. Can be complete with stuffing box seal or mechanical seal. KEM - pumps are designed for transferring liquids with temperatures up to 140°C. Pumps are complete with mechanical seals.

      Pumps type E, ET, KEM are noted for high energy data and compact design.

      The indication of the pumps includes the following symbols:

ET - A/40 -125 MS

E	-	single-stage
T	-	for fluids of temperature up to 140°С
M	-	mono block version
A(B)	-	reduced impeller diameter version
40	-	diameter of the discharge flange in mm
125	-	approx. diameter of the impeller in mm
MS	-	mechanical seal version
GS	-	gland seal version
01	-	construction materials version

The material of the basic parts of the pump according to the different versions.

Detail	Construction materials
	Standard	01	02	03
Casing	Cast iron	Cast iron	Bronze	Stainless steel
Stuffing box	Cast iron	Cast iron	Bronze	Stainless steel
Impeller	Cast iron	Bronze	Bronze	Stainless steel
Dapper screw-nut	Cast iron	Bronze	Bronze	Stainless steel
Packing ring	Cast iron	Bronze	Bronze	Stainless steel
Gland flange	Cast iron	Bronze	Bronze	Stainless steel
Sealing ring	Cast iron	Bronze	Bronze	Stainless steel
Mechanical seal	Ceramics/ Graphite/ Stainless steel/ Viton
Protective sleeve	Steel Chrome 13%		Stainless steel
Bearing housing	Cast iron
Cap	Cast iron
Support	Cast iron
Disc	Cast iron
Shaft	Carbon steel	Steel Chrome 13%	Stainless steel
O-Rings	Butyl rubber
Gland seal	Cotton		PTFE (Teflon)
Indication of materials
