400DT22
TECHNICAL PARAMETERS
| n=960 min-1 |
| Pump Type | Q
l/s | H
m | P
kW |
| 400DT22 | 180-300 | 11– 6 | 55
45
30 |

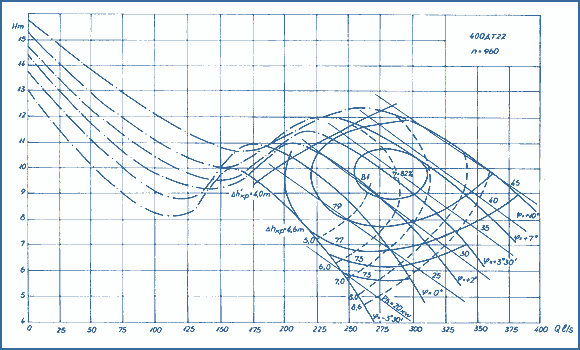

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPSections
(Long 1= 1600) | Sections
(Short 1= 1100) | LC, mm | Pump mass, kg | 1 | - | 2400 | 900 | 1 | 1 | 3500 | 1200 | 2 | - | 4000 | 1300 | 2 | 1 | 5100 | 1600 | 3 | - | 5600 | 1700 | 3 | 1 | 6700 | 2000 | 4 | - | 7200 | 2100 | 4 | 1 | 8300 | 2400 |
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT Dy
( А) | D1
( А) | D
( А) | Dy
( В) | D1
( В) | D
( В) | Blades fixing angle in degr. | Power, kW | LD | LA | LB | Minimum submersion, mm | 400 | 840 | 900 | 400 | 495 | 535 | -3°30, 0°
+2°, +3°30
+7°, +10° | 30
45
55 | 1990
2070
2110 | 400 | 800 | 500 |

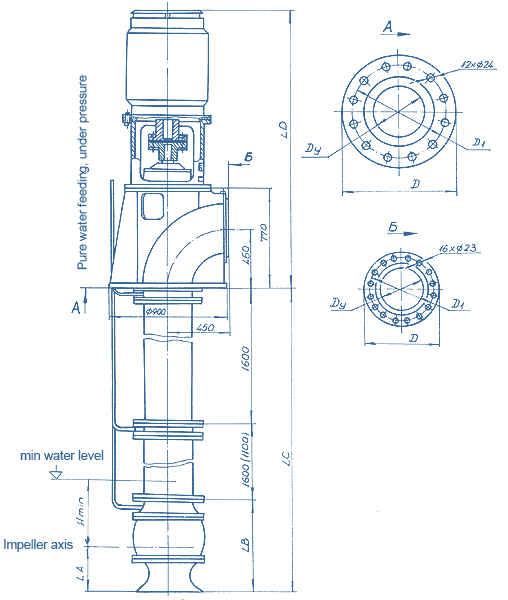

DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
