400DT22
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | P
kW |
| 400DT22 | 325-550 | 27-14 | 160
132
110 |

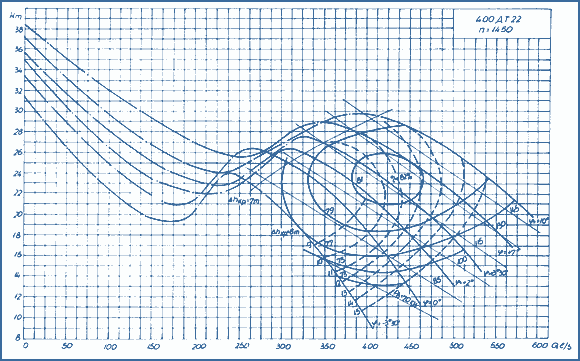

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPSections
(Long 1= 1600) | Sections
(Short 1= 1100) | LC, mm | Pump mass, kg | 1 | - | 2400 | 900 | 1 | 1 | 3500 | 1200 | 2 | - | 4000 | 1300 | 2 | 1 | 5100 | 1600 | 3 | - | 5600 | 1700 | 3 | 1 | 6700 | 2000 | 4 | - | 7200 | 2100 | 4 | 1 | 8300 | 2400 |
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITDy
( А) | D1
( А) | D
( А) | Dy
( В) | D1
( В) | D
( В) | Blades fixing angle in degr. | Power, kW | LD | LA | LB | Minimum submersion, mm | 400 | 840 | 900 | 400 | 495 | 535 | -3° 30, 0°
+2°, +3°30
+7°, +10° | 110
132
160 | 2280
2240
2190 | 400 | 800 | 800 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
