900D80B
TECHNICAL PARAMETERS
| n=970 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm |
| 900D80B | 500 | 65 | 75 | 6 | 630 | 670 |
750 | 60 | 82 | 7 |
950 | 50 | 75 | 9,7 |

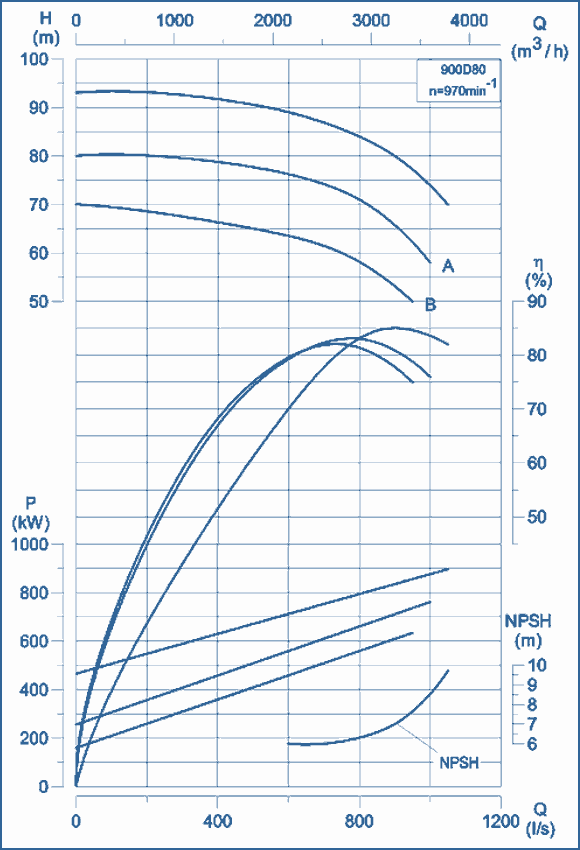

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP| Pump Type | LA | LB | LC | LD | LE | LF | LG | LH | BA | BB | ВС | BD | BE | BF | НА | НВ | НС | HD | а | Ds | Dd | d | s | t | Weight, kg | 900D80B | 1783 | 993 | 1100 | 950 | 700 | 1100 | 950 | 700 | 1900 | 1000 | 1400 | 1200 | 600 | 200 | 1555 | 900 | 450 | 650 | 40 | 600 | 450 | 115 | 32 | 122 | 3078 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT | Pump Type | P, kW | LA | LB | LC | LD | b | BA | BB | ВС | HA | HB | HC | HD | Weight, kg | 900D80B | 630 | 3476 | 960 | 900 | 1250 | 35 | 1035 | 900 | 300 | 985 | 450 | 45 | 32 | 6418 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
