Centrifugal Double Suction Pumps
description drawings diagrams technical data

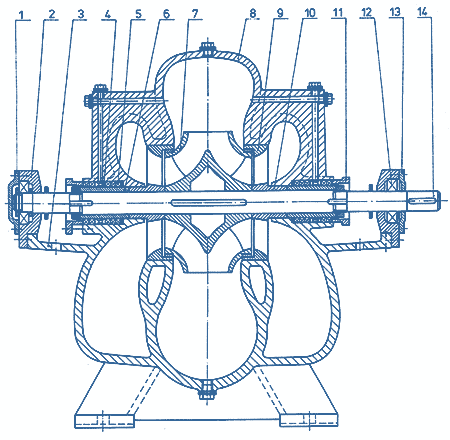

Sectional Drawing, D
  1. Bearing cap
  2. Bearing housing
  3. Body
  4. Stuffing - box ring
  5. Soft packing
  6. Safety Sleeve
  7. Impeller
  8. Cover
  9. Packing Ring
  10. Safety Sleeve
  11. Stuffing Box Flange
  12. Rolling Bearing
  13. Cap
  14. Shaft
  15. Mechanical Seal
Sectional Drawing, D

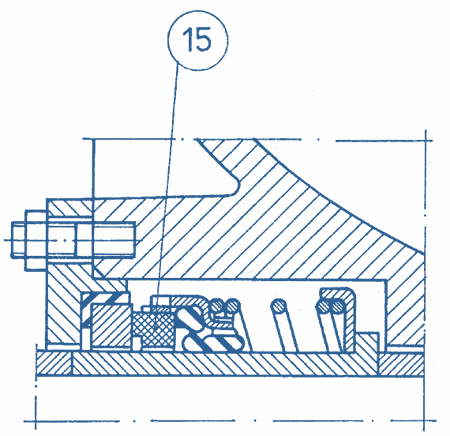

Mechanical Seal Version
Mechanical Seal Version
