900D30
TECHNICAL PARAMETERS
| n=970 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm |
| 900D30 | 700 | 33,5 | 78 | 5,8 | 400 | 540 |
900 | 30 | 86 | 7,2 |
1050 | 26 | 82 | 13,5 |

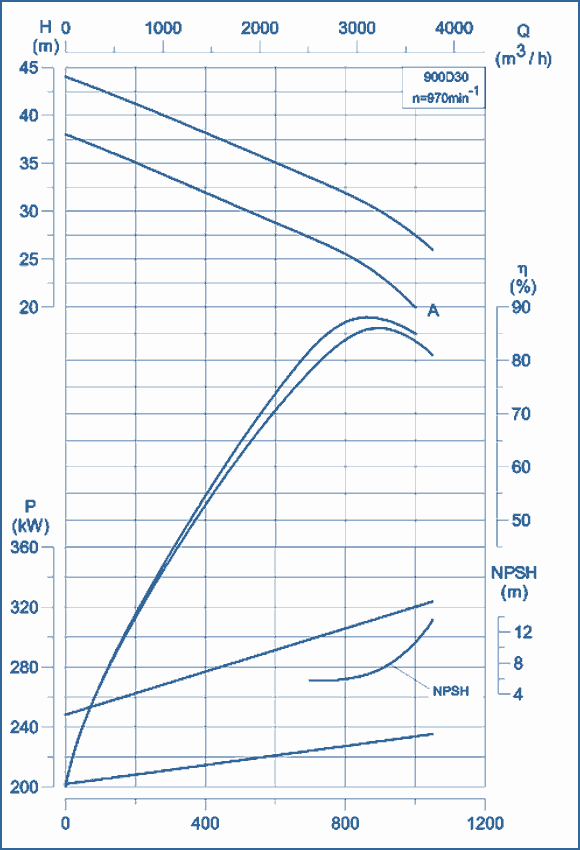

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP| Pump Type | LA | LB | LC | LD | LE | LF | LG | LH | BA | BB | ВС | BD | BE | BF | НА | НВ | НС | HD | а | Ds | Dd | d | s | t | Weight, kg | 900D30 | 1663 | 938 | 1000 | 900 | 400 | 1000 | 900 | 400 | 1620 | 600 | 1120 | 920 | 560 | 170 | 1531 | 950 | 552 | 530 | 40 | 600 | 500 | 85 | 22 | 90 | 2828 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT | Pump Type | P, kW | LA | LB | LC | LD | b | BA | BB | ВС | HA | HB | HC | HD | Weight, kg | 900D30 | 400 | 3212 | 906 | 900 | 1130 | 35 | 890 | 800 | 270 | 855 | 450 | 45 | 27 | 5075 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
