300D70B
TECHNICAL PARAMETERS
| n=970 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm |
| 300D70B | 165 | 22 | 81 | 4 | 55 | 400 | 200 | 21 | 84 | 4 | 55 | 250 | 18 | 80 | 5 | 75 |

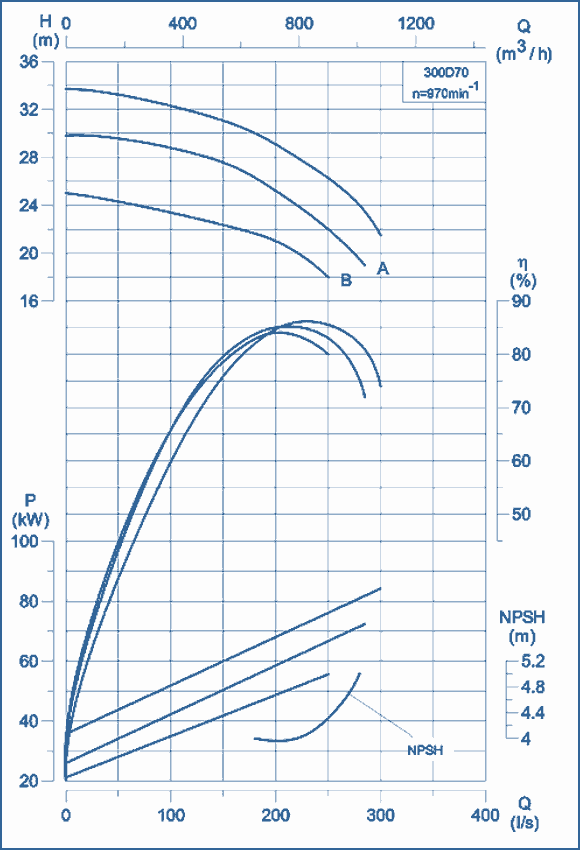

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP| Pump Type | LA | LB | LC | LD | LE | LF | LG | LH | BA | BB | ВС | BD | BE | BF | НА | НВ | НС | HD | а | Ds | Dd | d | s | t | Weight, kg | 300D70B | 1119 | 628 | 720 | 600 | 400 | 720 | 600 | 400 | 1392 | 770 | 790 | 600 | 300 | 160 | 1040 | 600 | 335 | 435 | 35 | 350 | 300 | 55 | 16 | 59 | 1034 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT | Pump Type | P, kW | LA | LB | LC | LD | b | BA | BB | ВС | HA | HB | HC | HD | Weight, kg | 300D70,A,B | 75 | 2307 | 722 | 457 | 527 | 28 | 630 | 508 | 120 | 765 | 285 | 40 | 45 | 1777 | 300D70B | 55 | 2167 | 666 | 418 | 480 | 24 | 556 | 457 | 100 | 680 | 320 | 40 | 40 | 1632 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
