300D40B (350D90B)
.jpg)
TECHNICAL PARAMETERS
| n=970 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm |
| 300D40B (350D90B) | 220 | 33 | 80 | 4 | 110 | 480 | 250 | 32 | 83 | 4,5 | 110 | 300 | 30 | 84 | 5 | 132 |

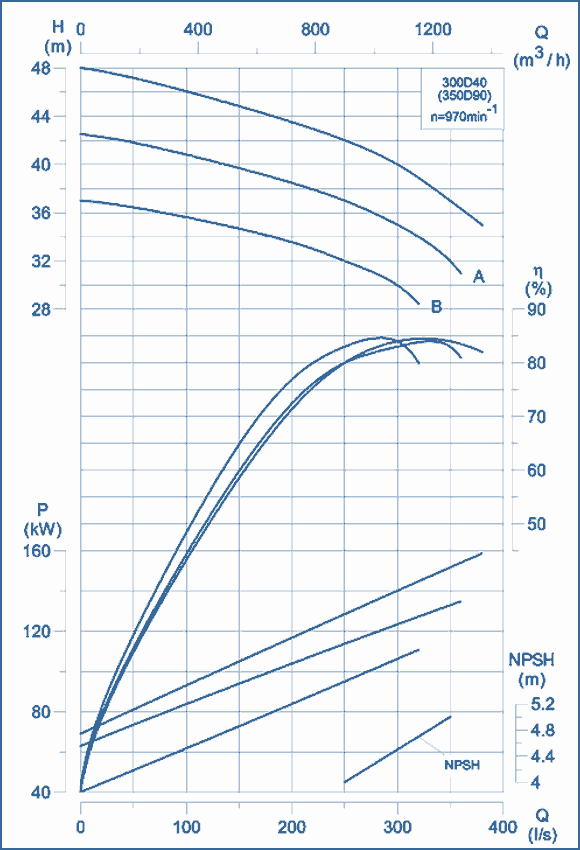

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP| Pump Type | LA | LB | LC | LD | LE | LF | LG | LH | BA | BB | ВС | BD | BE | BF | НА | НВ | НС | HD | а | Ds | Dd | d | s | t | Weight, kg | 300D40B (350D90B) | 1285 | 708 | 820 | 700 | 480 | 820 | 700 | 480 | 1645 | 900 | 900 | 700 | 250 | 225 | 1053 | 670 | 372 | 482 | 35 | 400 | 350 | 70 | 20 | 74,5 | 1447 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT | Pump Type | P, kW | LA | LB | LC | LD | b | BA | BB | ВС | HA | HB | HC | HD | Weight, kg | 300D40A,B (350D90A,B) | 132 | 2635 | 772 | 508 | 578 | 28 | 630 | 508 | 120 | 765 | 167 | 40 | 45 | 2427 | 300D40B (350D90B) | 110 | 2635 | 772 | 508 | 578 | 28 | 630 | 508 | 120 | 765 | 167 | 40 | 45 | 2399 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
