200D90B
TECHNICAL PARAMETERS
| n=970 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm |
| 200D90B | 100 | 36 | 75 | 3 | 55 | 475 | 133 | 34 | 78 | 3,5 | 55 | 166 | 30 | 71 | 4,5 | 75 |

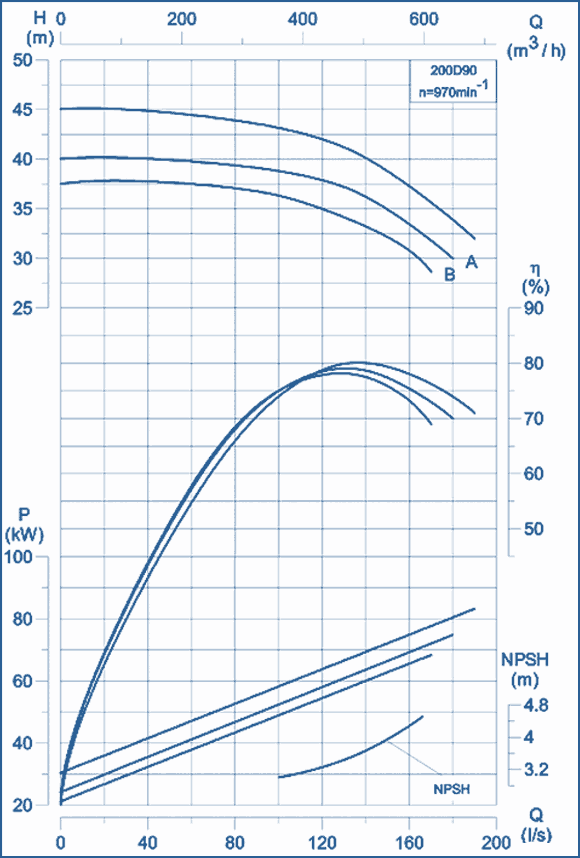

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP| Pump Type | LA | LB | LC | LD | LE | LF | LG | LH | BA | BB | ВС | BD | BE | BF | НА | НВ | НС | HD | а | Ds | Dd | d | s | t | Weight, kg | 200D90B | 1032 | 584 | 500 | 380 | 120 | 500 | 380 | 120 | 1258 | 610 | 790 | 600 | 300 | 150 | 844 | 480 | 335 | 243 | 30 | 250 | 200 | 55 | 16 | 59 | 603 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT | Pump Type | P, kW | LA | LB | LC | LD | b | BA | BB | ВС | HA | HB | HC | HD | Weight, kg | 200D90,A,B | 75 | 2220 | 788 | 457 | 527 | 28 | 630 | 508 | 120 | 766 | 525 | 30 | 45 | 1334 | 200D90A,B | 55 | 2080 | 732 | 419 | 480 | 24 | 556 | 457 | 100 | 680 | 560 | 30 | 40 | 1190 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
