700D62A (VD2500-62A)
TECHNICAL PARAMETERS
| n=970 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm |
| 700D62A (VD2500-62A) | 430 | 59 | 84 | 5 | 400 | 640 |
640 | 52 | 86 | 6 |
770 | 44 | 83 | 7,5 |

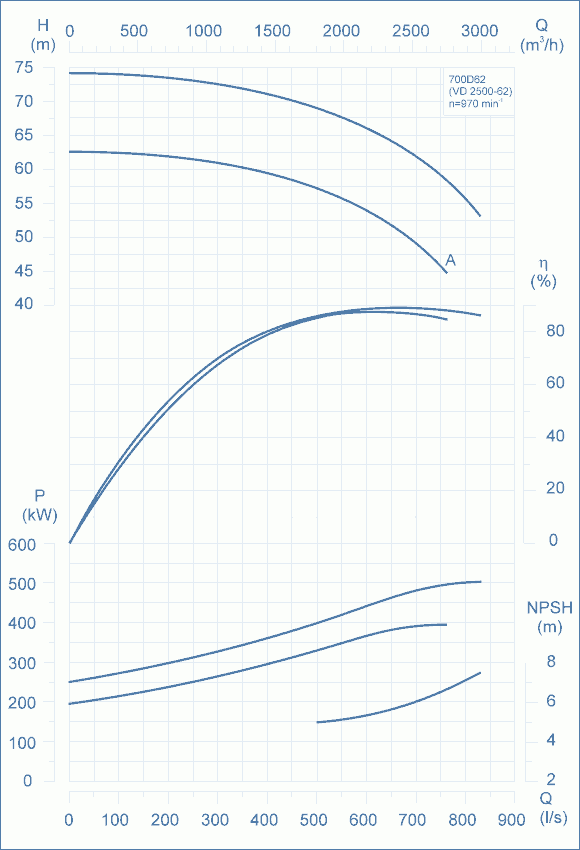

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP| Pump Type | LA | LB | LC | LD | LE | LF | LG | LH | BA | BB | ВС | BD | BE | BF | НА | НВ | НС | HD | а | Ds | Dd | d | s | t | Weight, kg | 700D62A (VD2500-62A) | 1832 | 1025 | 1150 | 900 | - | 1150 | 900 | - | 1670 | 770 | 1100 | 850 | 430 | 250 | 1427 | 850 | 475 | 620 | 42 | 500 | 400 | 85 | 22 | 90 | 2968 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT | Pump Type | P, kW | LA | LB | LC | LD | b | BA | BB | ВС | HA | HB | HC | HD | Weight, kg | 700D62A | 400 | 3385 | 995 | 900 | 1130 | 35 | 890 | 800 | 190 | 855 | 450 | 50 | 27 | 5065 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
