550D22A
TECHNICAL PARAMETERS
| n=730 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm |
| 550D22A | 300 | 10 | 80 | 3 | 55 | 410 |
375 | 8,5 | 85 | 3,5 |
420 | 6,5 | 80 | 5,5 |

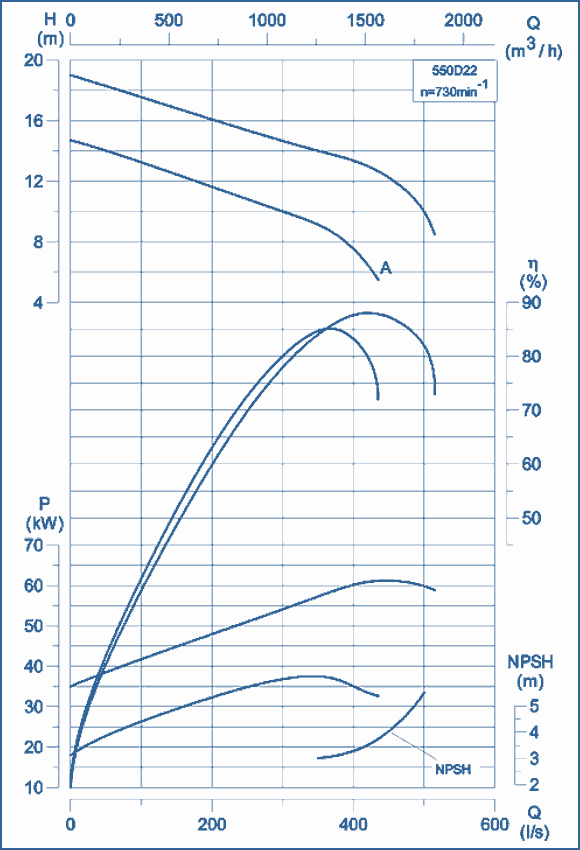

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP| Pump Type | LA | LB | LC | LD | LE | LF | LG | LH | BA | BB | ВС | BD | BE | BF | НА | НВ | НС | HD | а | Ds | Dd | d | s | t | Weight, kg | 550D22A | 1293 | 713 | 780 | 660 | 420 | 780 | 660 | 420 | 1350 | 500 | 800 | 600 | 300 | 160 | 1358 | 760 | 460 | 440 | 35 | 500 | 400 | 55 | 16 | 59 | 1539 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT | Pump Type | P kW | LA | LB | LC | LD | b | BA | BB | ВС | HA | HB | HC | HD | Weight, kg | 550D22A | 55 | 2481 | 447 | 457 | 527 | 28 | 630 | 508 | 120 | 765 | 445 | 35 | 45 | 2275 |
DIMENSIONAL DRAWING OF THE PUMP UNIT |
|
