28MS45.2
TECHNICAL PARAMETERS
| n=2920 min-1 |
| Pump Type> | Q
l/s | H
m | η
% | допустимая
вакуум.
всасыв. выс.
Hs, m | P
kW |
| 28MS45.2 | 20 | 102 | 60 | 6,5 | 45 | 27,82 | 90 | 67 | 5,5 | 35 | 74 | 62 | 4,5 |

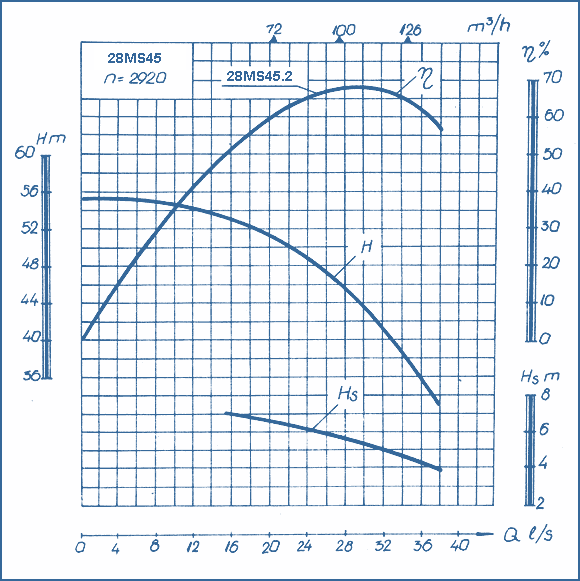

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | Power, kW | LA | LB | LD | LE | BA | ВС | HA | HB | HC | BE | BD | Pump mass, kg | Unit mass, kg | 28MS45.2 | 45 | 1794 | 415 | 1220 | 279 | 223 | 245 | 656 | 346 | 591 | 410 | 360 | 193 | 526 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
Flange Dimensions
|
|
