18MS32.8
TECHNICAL PARAMETERS
| n=2920 min-1 |
| Pump Type> | Q
l/s | H
m | η
% | допустимая
вакуум.
всасыв. выс.
Hs, m | P
kW |
| 18MS32.8 | 13 | 288 | 61 | 7 | 110 | 17,5 | 256 | 68 | 6 | 22 | 200 | 62 | 4 |

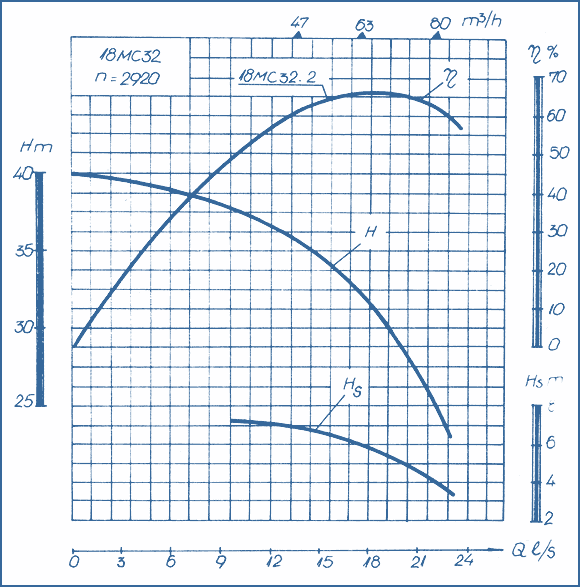

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | Power, kW | LA | LB | LD | LE | BA | ВС | HA | HB | HC | BE | BD | Pump mass, kg | Unit mass, kg | 18MS32.8 | 110 | 2490 | 332 | 1880 | 799 | 315 | 220 | 840 | 400 | 620 | 560 | 505 | 304 | 1090 |

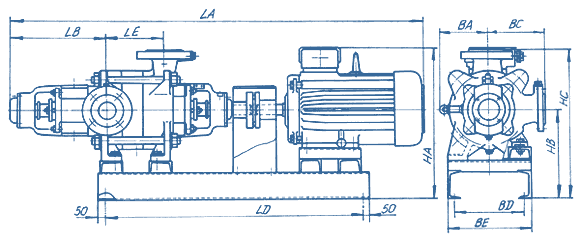

DIMENSIONAL DRAWING OF THE PUMP UNIT

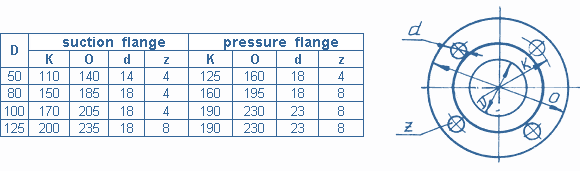

Flange Dimensions
|
|
