7MS32.3
TECHNICAL PARAMETERS
| n=2920 min-1 |
| Pump Type> | Q
l/s | H
m | η
% | допустимая
вакуум.
всасыв. выс.
Hs, m | P
kW |
| 7MS32.3 | 5,5 | 102 | 47 | 6,8 | 18,5 | 6,95 | 96 | 53 | 6 | 9 | 84 | 52 | 4,5 |

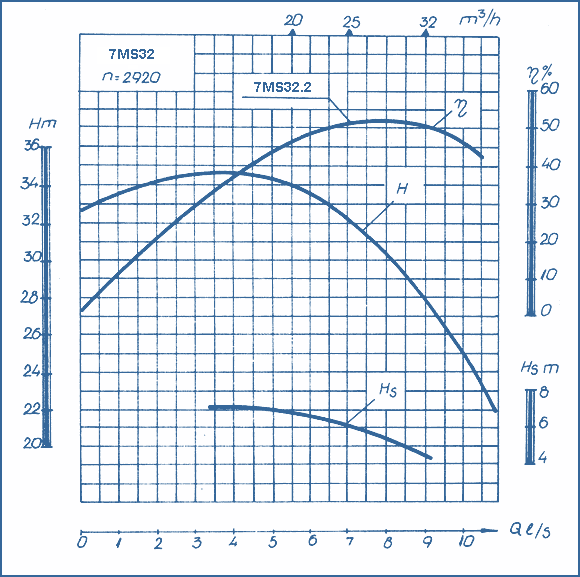

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | Power, kW | LA | LB | LD | LE | BA | ВС | HA | HB | HC | BE | BD | Pump mass, kg | Unit mass, kg | 7MS32.3 | 18,5 | 1472 | 311 | 1000 | 240 | 180 | 200 | 570 | 300 | 500 | 360 | 310 | 132 | 323 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
Flange Dimensions
|
|
