4MS25.4



TECHNICAL PARAMETERS
n=2900 min-1
Pump Type>Q
l/s
H
m
η
%
допустимая
вакуум.
всасыв. выс.
Hs, m
P
kW
4MS25.4

3,4

108

48

6,9

13

4,45

100

51

6

5,8

84

49

4,9

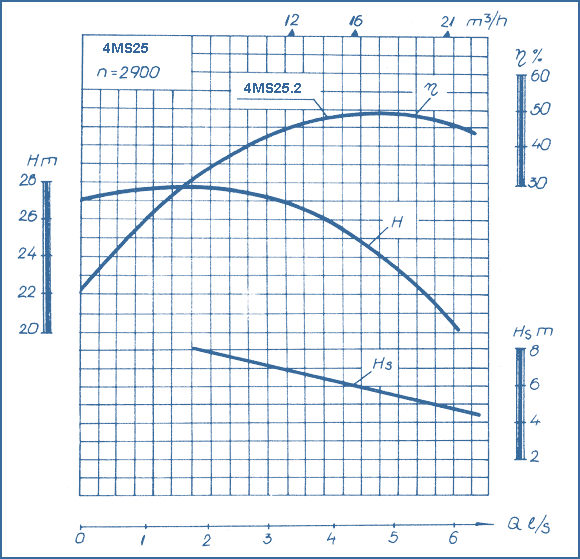

PERFORMANCE CURVES
performance curves


OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

Pump Type

Power, kW

LA

LB

LD

LE

BA

ВС

HA

HB

HC

BE

BD

Pump mass, kg

Unit mass, kg

4MS25.4

13

1393

268

970

288

156

175

487

266

455

330

285

105

241




DIMENSIONAL DRAWING OF THE PUMP UNIT
overall and mounting dimensions

Flange Dimensions
overall and mounting dimensions
