E/50-250
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| E/50-250 | 11 | 86 | 49 | 2,4 | 30 | 260 | 16,5 | 80 | 62 | 3,2 | 20,5 | 71 | 59 | 4,2 |

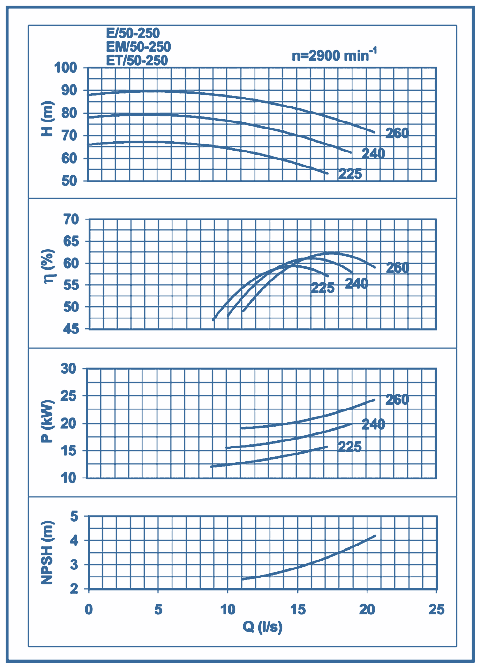

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITElectric Motor Type | Power, kW | LA | LB | LC | LD | LE | BA | BB | BC | HA | HB | HC | a | Ds | Dd | Pump mass, kg | Unit mass, kg | 200L | 30 | 1319 | 100 | 360 | 100 | 1120 | 390 | 350 | 400 | 630 | 320 | 545 | 16 | 65 | 50 | 59 | 409 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
