E/50-250
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | P
kW | D2
mm | | E/50-250 | 5,5 | 21 | 45 | 0,9 | 4 | 260 | 8,3 | 20 | 58 | 1,3 | 10,3 | 17,5 | 55 | 2,5 |

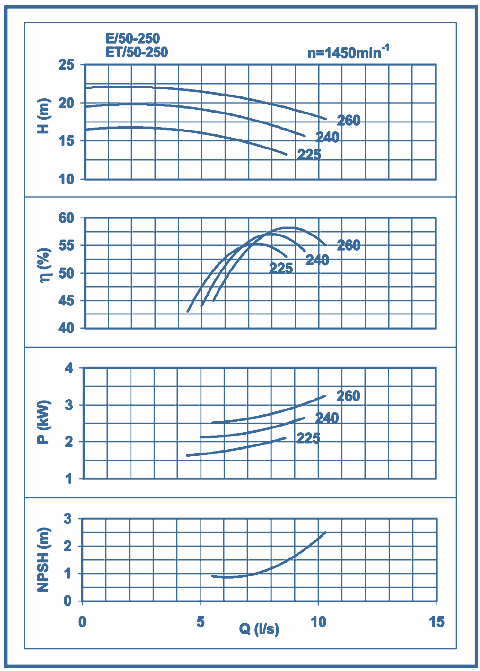

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITP, kW | LA | LB | LC | LD | LE | BA | BB | BC | HA | HB | HC | a | Ds | Dd | Pump mass, kg | Unit mass, kg | 4 | 937 | 100 | 360 | 100 | 842 | 220 | 350 | 400 | 470 | 320 | 545 | 16 | 65 | 50 | 59 | 204 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
