description drawings diagrams technical data: if n=970 min^-1

FVK/300-400

TECHNICAL PARAMETERS

n=1450 min^-1
Pump Type	Q l/s	H m	η %	P kW	D2 mm
FVK/300-400	260	53	57	315	410
	360	50	65
	480	43	64

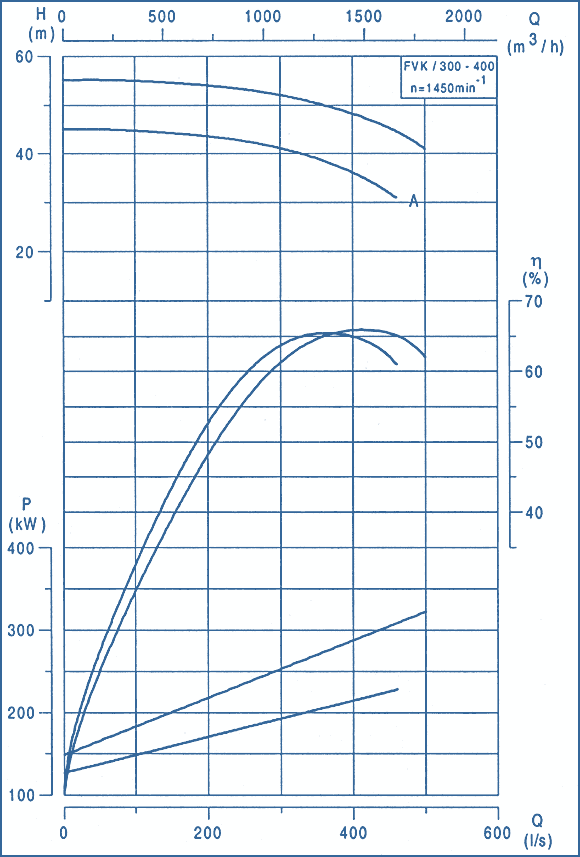

PERFORMANCE CURVES

performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

P, kW	BA	BB	BC	BE	HA	HB	HC	HD	HE	M	N	a	Ds	Dd	Pump mass, kg	Unit mass, kg
315	975	550	400	325	-	-	613	213	1236	760	850	22	300	300	632	-
110	975	550	400	325	3009	1386	613	213	1236	760	850	22	300	300	632	1562

Flange Dimensions According to BSS EN 1092-2

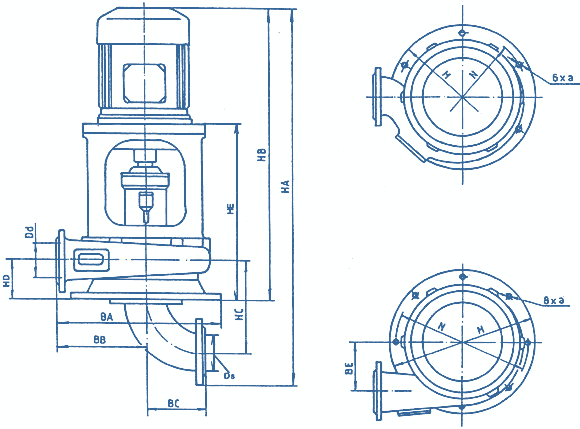

DIMENSIONAL DRAWING OF THE PUMP UNIT

overall and mounting dimensions
