description drawings diagrams technical data: if n=970 min^-1

FVK/200-400A

TECHNICAL PARAMETERS

n=1450 min^-1
Pump Type	Q l/s	H m	η %	P kW	D2 mm
FVK/200-400A	150	32,5	55	132	360
	200	30	59
	265	26	57

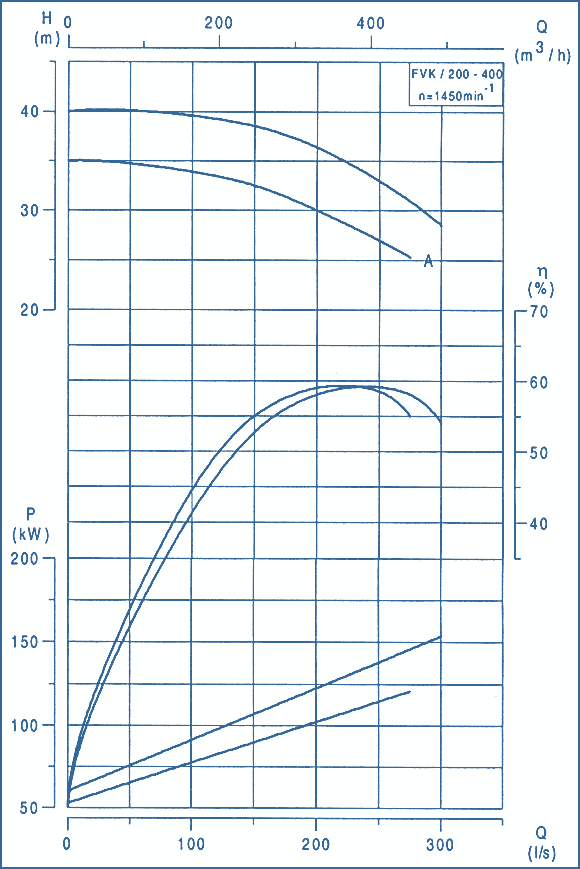

PERFORMANCE CURVES

performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

P, kW	BA	BB	BC	BE	HA	HB	HC	HD	HE	M	N	a	Ds	Dd	Pump mass, kg	Unit mass, kg
132	975	550	300	310	2670	2228	467	195	1218	760	850	22	200	200	567	1432
45	975	550	300	310	2560	2118	467	195	1218	760	850	22	200	200	567	1047

Flange Dimensions According to BSS EN 1092-2

DIMENSIONAL DRAWING OF THE PUMP UNIT

overall and mounting dimensions
