description drawings diagrams technical data:

FVK/150-400A

TECHNICAL PARAMETERS

n=1450 min^-1
Pump Type	Q l/s	H m	η %	P kW	D2 mm
FVK/150-400A	75	40	67	75	355
	95	36	69
	124	26	60

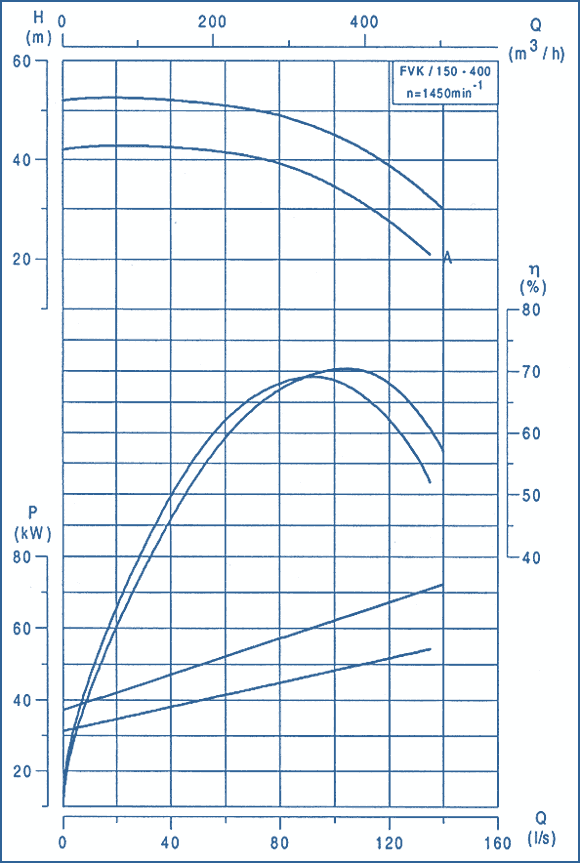

PERFORMANCE CURVES

performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

P, kW	BA	BB	BC	BE	HA	HB	HC	HD	HE	M	N	a	Ds	Dd	Pump mass, kg	Unit mass, kg
75	780	450	304	-	2290	1814	468	160	914	620	660	22	200	150	498	1003

Flange Dimensions According to BSS EN 1092-2

DIMENSIONAL DRAWING OF THE PUMP UNIT

overall and mounting dimensions
