FVK/125-315

TECHNICAL PARAMETERS

n=1450 min^-1
Pump Type	Q l/s	H m	η %	P kW	D2 mm
FVK/125-315	50	33	67,5	37	336
	69	29	73
	80	24,5	70

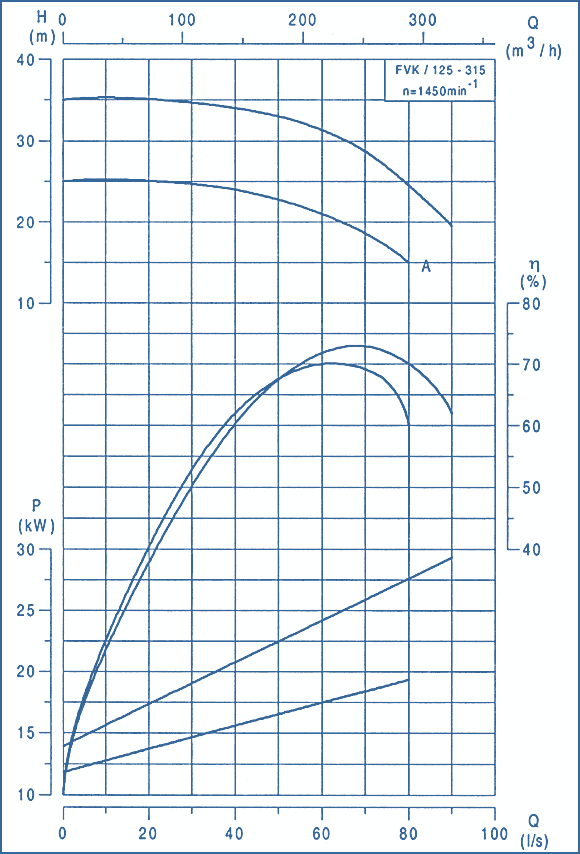

PERFORMANCE CURVES

performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

P, kW	BA	BB	BC	BE	HA	HB	HC	HD	HE	M	N	a	Ds	Dd	Pump mass, kg	Unit mass, kg
37	655	355	230	-	1823	1463	370	150	715	540	600	22	150	125	365	687

Flange Dimensions According to BSS EN 1092-2

DIMENSIONAL DRAWING OF THE PUMP UNIT

overall and mounting dimensions
