Home  >>  Products  >>  Sewage Pumps  >>  FVK
description drawings diagrams technical data

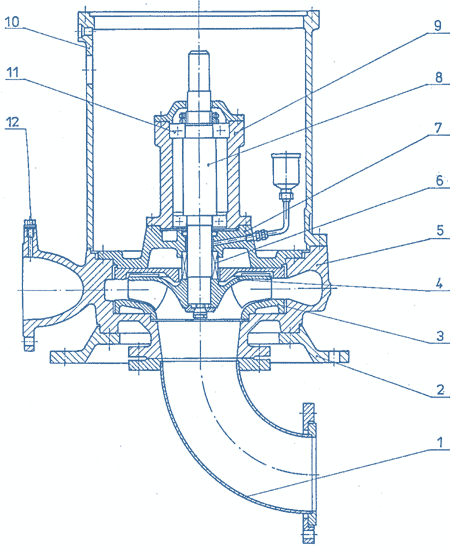

Sectional Drawing, FVK
  1. Bend
  2. Support
  3. Disc
  4. Impeller
  5. Body
  6. Mechanical seal
  7. Stuffing box
  8. Shaft
  9. Bearing housing
  10. Upper body
  11. Ball bearing
  12. Plug
Sectional Drawing, FVK
