Vipom's pumps pumpsSubmersible Pumps, PV
pumps
Submersible Pumps
description drawings diagrams technical data

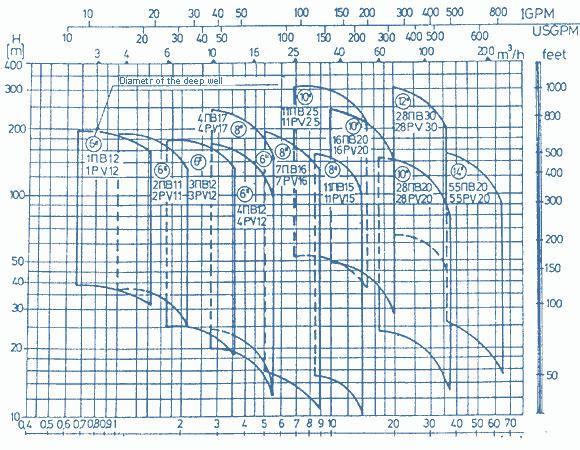

Q-H Diagrams Of Pumps, PV
Q-H Diagrams Of Pumps, PV
The technical parameters of pumps (H,Q,η,P,NPSH) and the performance curves refer to:
1.Water temperature: 20°C
2.Pressure: 735,5 mm Hg
3.Cinematic viscosity: ν=1·10-6 m²/s (cSt)
