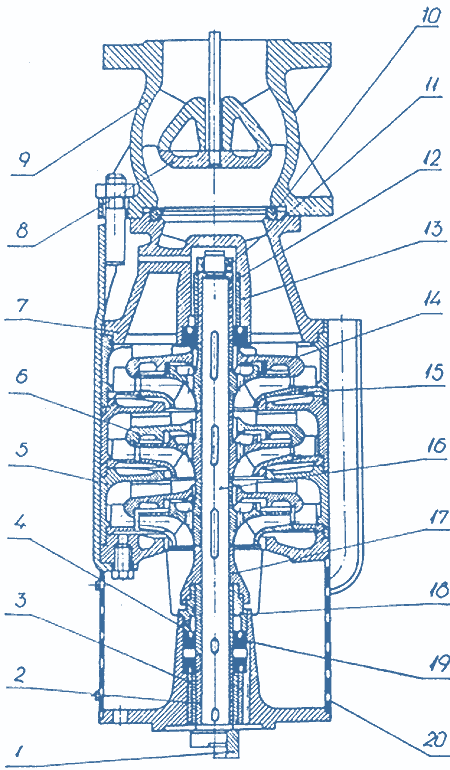

Sectional Drawing, PV 6" ¸ 12"
  1. Disc
  2. Protective sleeve
  3. Bearing sleeve
  4. Suction body
  5. Body intermediate
  6. Guiding apparatus
  7. Discharge body
  8. Valve
  9. Body
  10. Packing
  11. Nut
  12. Protective sleeve
  13. Bearing sleeve
  14. Packing ring
  15. Impeller
  16. Shaft
  17. Protective sleeve
  18. Labyrinth sleeve
  19. Gland seal
  20. Plate
Sectional Drawing, PV

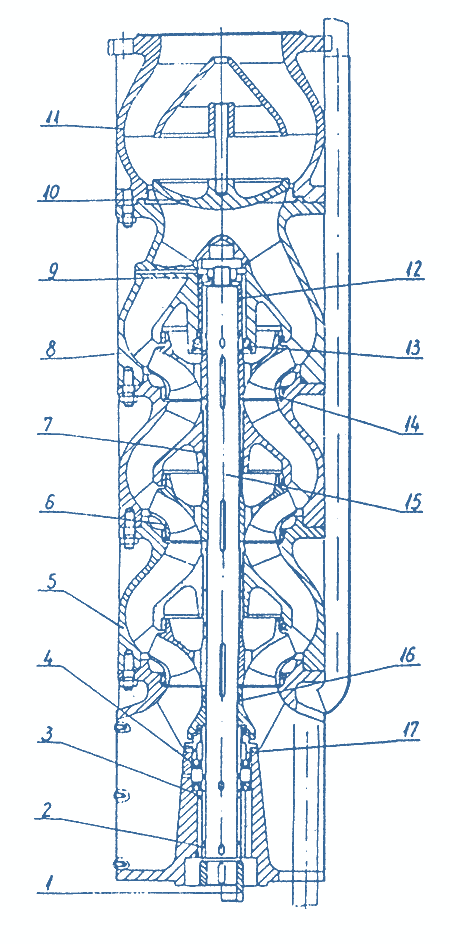

Sectional Drawing, PV 14"
  1. Disc
  2. Protective sleeve
  3. Bearing sleeve
  4. Suction body
  5. Guiding apparatus
  6. Impeller
  7. Sleeve
  8. Guiding apparatus
  9. Circular screw-nut
  10. Valve
  11. Discharge body
  12. Protective sleeve
  13. Packing
  14. Packing ring
  15. Shaft
  16. Intermediate sleeve
  17. Labyrinth sleeve
Sectional Drawing, PV
