Single-Stage Pumps, E, KEM, ET

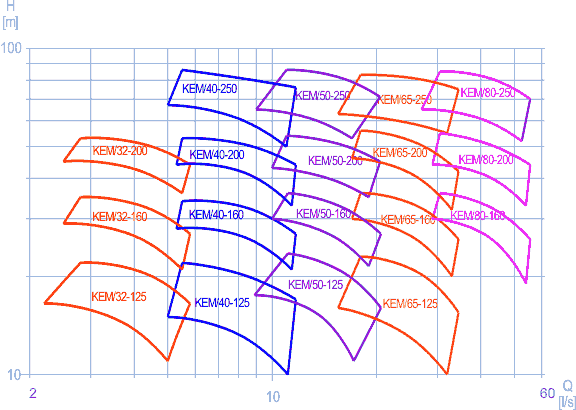

| Q-H Diagrams Of Pumps, "KEM" |
|

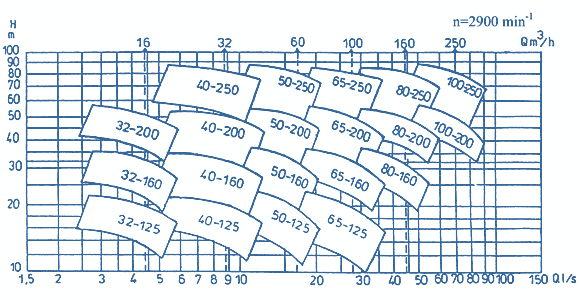

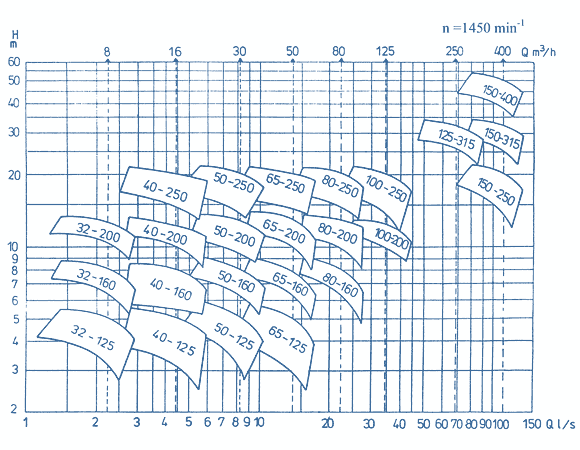

| Q-H Diagrams Of Pumps "E","ET" |
|
| Q-H Diagrams Of Pumps "E","ET" |
|
|
The technical parameters of pumps (H,Q,η,P,NPSH) and the performance curves refer to:
1.Water temperature: 20°C 2.Pressure: 735,5 mm Hg 3.Cinematic viscosity: ν=1·10-6 m²/s (cSt) |
