 Single-Stage Pumps, E, KEM, ET
|
|
|
|
|
|

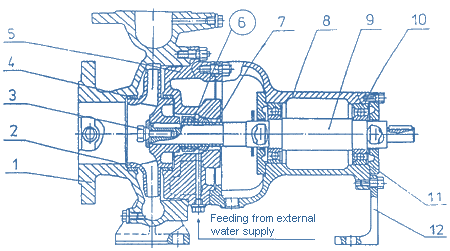

Sectional Drawing, "E" |
- Casing
- Impeller
- Lock bolt
- Packing ring
- Stuffing box
- Mechanical seal
- Protective sleeve
- Bearing housing
- Shaft
- Single-row ball bearing
- Cap
- Support
- "O"-ring
- Disk
- "O"-ring
- Gland flange
- Gland seal
- Sealing ring
|
 |

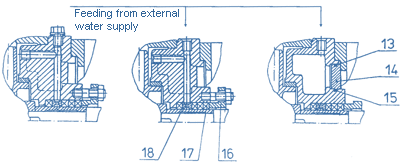

| Sectional Drawing, "ET" |
 |

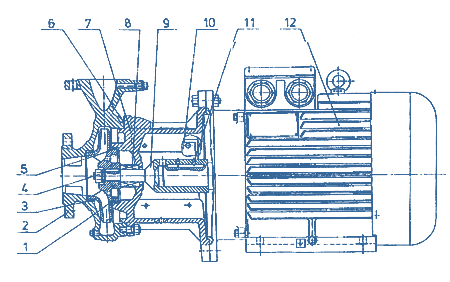

| Sectional Drawing, "KEM" |
1.Impeller
2.Pump casing
3.Sealing ring
4.Nut
5.Back sealing ring
6.Seal
7.Intermediate casing
8.Mechanical seal
9.Extension shaft
10.Safety stop
11.Lock screw
12.Electric motor
|
 |
|
 |
