ET-B/65-250
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| ET-B/65-250 | 15,5 | 63 | 55 | 2,7 | 30 | 220 | 25 | 59 | 67 | 3,2 | 32 | 55 | 65 | 4,1 |

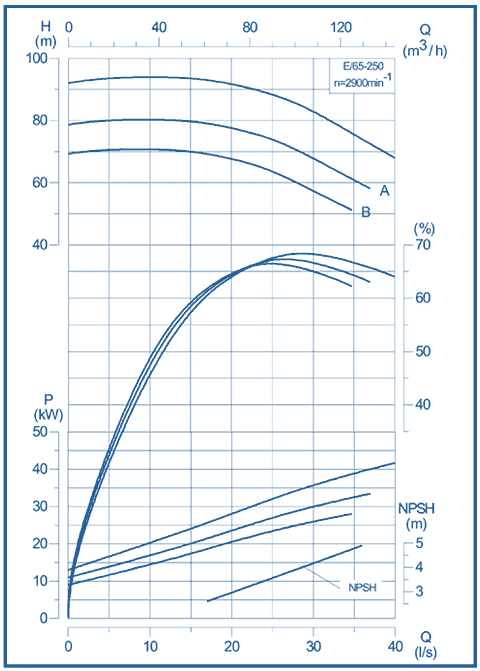

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITElectric Motor Type | Power, kW | LA | LB | LC | LD | LE | BA | BB | BC | HA | HB | HC | a | Ds | Dd | Pump mass, kg | Unit mass, kg | 200L | 30 | 1469 | 100 | 470 | 140 | 1267 | 390 | 360 | 410 | 650 | 340 | 590 | 18 | 80 | 65 | 45 | 385 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
