ET/65-200
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| ET/65-200 | 18 | 56 | 70 | 3 | 22 | 215 | 27,5 | 50 | 76 | 3,5 | 34,5 | 42 | 71 | 4,5 |

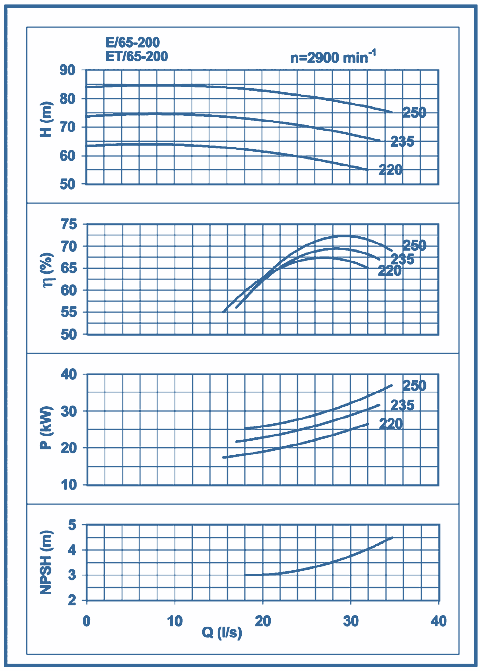

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITElectric Motor Type | Power, kW | LA | LB | LC | LD | LE | BA | BB | BC | HA | HB | HC | a | Ds | Dd | Pump mass, kg | Unit mass, kg | 180M | 22 | 1334 | 100 | 360 | 140 | 1080 | 346 | 325 | 370 | 570 | 300 | 525 | 16 | 80 | 65 | 57 | 247 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
