E- A /40 -125
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| E- A /40 -125 | 5 | 19,5 | 56 | 1,8 | 3 | 132 | 8,5 | 17 | 68 | 2,4 | 11 | 14 | 66 | 3,5 |

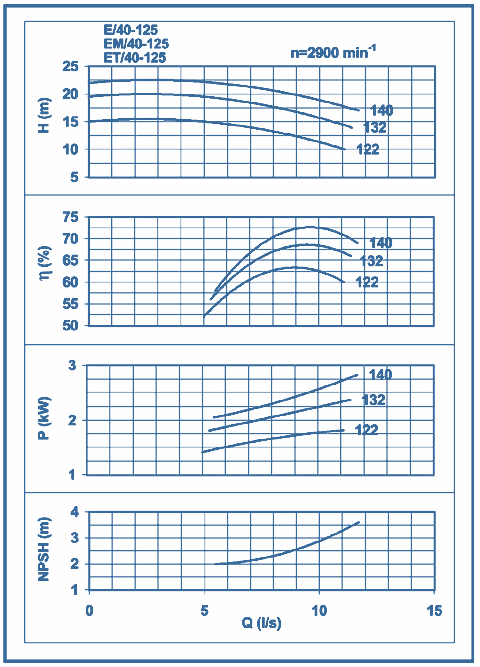

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITElectric Motor Type | Power, kW | LA | LB | LC | LD | LE | BA | BB | BC | HA | HB | HC | a | Ds | Dd | Pump mass, kg | Unit mass, kg | 100L | 3 | 917 | 80 | 360 | 100 | 729 | 192 | 220 | 250 | 322 | 182 | 322 | 14 | 65 | 40 | 39 | 79 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
