Vipom's pumps
pumps


55DV90B (VDV200-90B)



TECHNICAL PARAMETERS
n=2900 min-1
Pump Type

Q
l/s

H
m

P
kW
55DV90B (VDV200-90B)

30

70

45

44

64

52

59

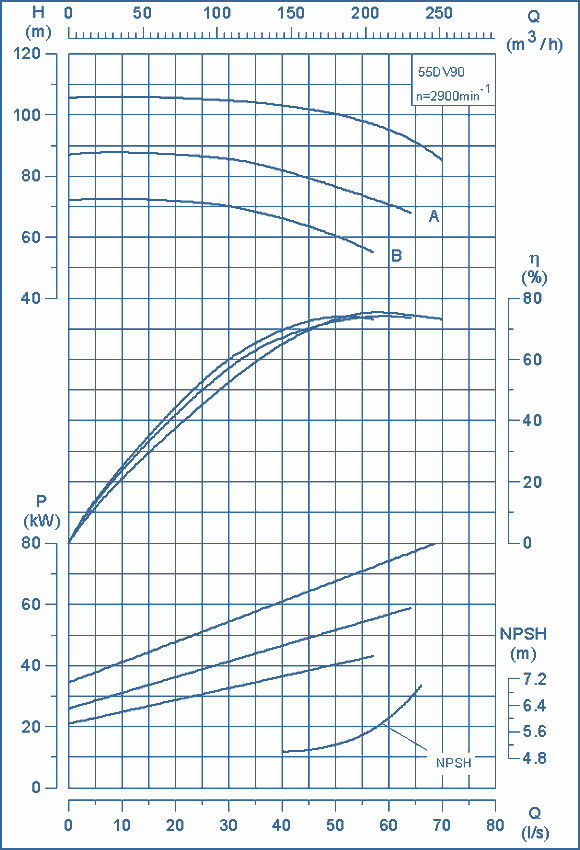

PERFORMANCE CURVES
performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP

Pump Type

Power, kW

Overall dimensions of the pump (LxBxC), mm

Weight, kg

55DV90B (VDV 200 - 90B)

45

530x525x1035

197


DIMENSIONAL DRAWING OF THE PUMP

overall and mounting dimensions

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

Pump Type

Power, kW

Overall dimensions of the pump unit(LxBxH), mm

Weight, kg

55DV90B (VDV 200 - 90B)

45

530x535x1730

482



DIMENSIONAL DRAWING OF THE PUMP UNIT
overall and mounting dimensions
