description drawings diagrams technical data:

16VP

TECHNICAL PARAMETERS

n=2950 min^-1
Pump Type	Q l/s	Hv m	Hv mmHg	Hv max if Q=0 m	P kW
16VP	17	4,08	300	8,5	3
	16	6,8	500
	10	8,15	600

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

Pump Unit Type	P,kW	LA	LB	LD	LE	BA	BB	HA	HB	HC	BE	BD	D	K	O	d	Z	Pump mass, kg	Unit mass, kg
16VP	3	833	112	710	171	185	0	329	205	362	210	170	40	100	130	14	4	32	81

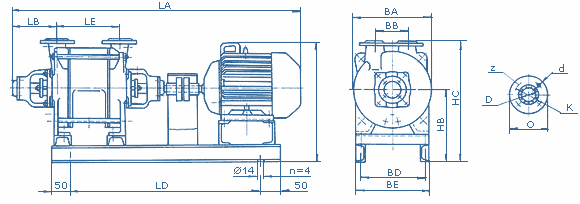

DIMENSIONAL DRAWING OF THE PUMP UNIT

overall and mounting dimensions
