description drawings diagrams technical data: if n=1450 min^-1

FE/65-200A

TECHNICAL PARAMETERS

n=2900 min^-1
Pump Type	Q l/s	H m	η %	P kW	D2 mm
FE/65-200A	14	46	47	22	185
	25	40	53
	32	32	50

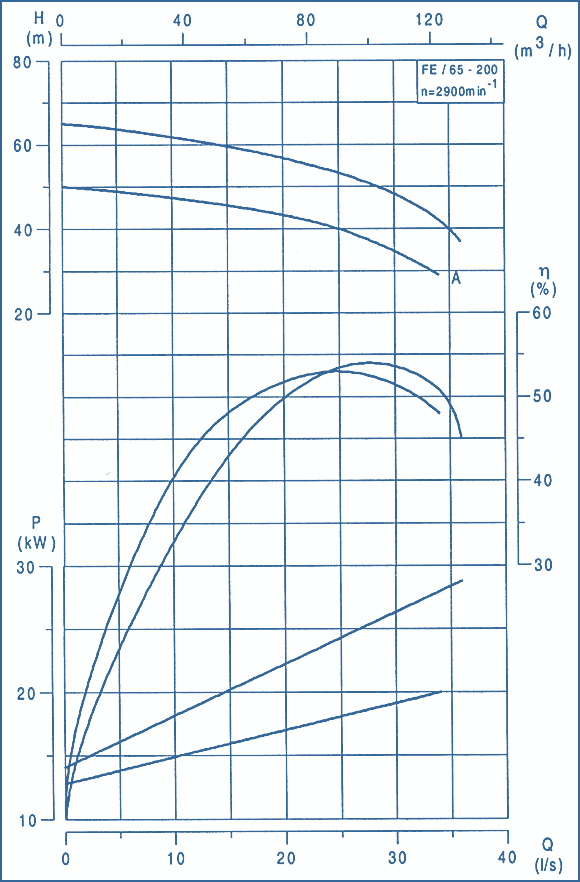

PERFORMANCE CURVES

performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

P, kW	LA	LB	LC	LE	BA	BB	BC	HA	HB	HC	a	Ds	Dd	Pump mass, kg	Unit mass, kg
22	1142	100	360	940	346	350	400	570	300	525	14	80	65	59	262

Flange Dimensions According to BSS EN 1092-2

DIMENSIONAL DRAWING OF THE PUMP UNIT

overall and mounting dimensions
