ET-B/40-250
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| ET-B/40-250 | 5 | 67 | 38 | 1,8 | 15 | 228 | 8,3 | 60 | 53 | 2,2 | 11,1 | 50 | 52 | 3,2 |

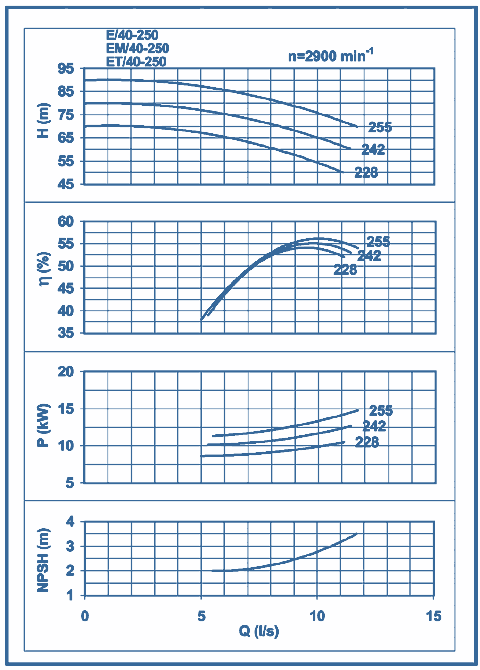

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITElectric Motor Type | Power, kW | LA | LB | LC | LD | LE | BA | BB | BC | HA | HB | HC | a | Ds | Dd | Pump mass, kg | Unit mass, kg | 160M | 15 | 1214 | 100 | 360 | 100 | 997 | 305 | 315 | 360 | 530 | 280 | 505 | 16 | 65 | 40 | 61 | 204 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
