description drawings diagrams technical data:

FE/40-200A

TECHNICAL PARAMETERS

n=2900 min^-1
Pump Type	Q l/s	H m	η %	P kW	D2 mm
FE/40-200A	5,3	4	42	11	185
	8,6	41	48
	11,4	33	47

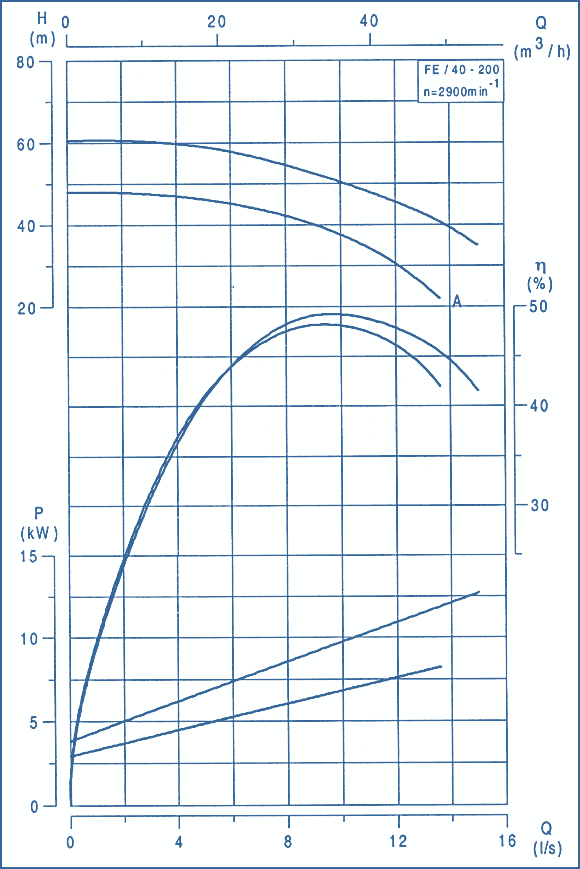

PERFORMANCE CURVES

performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

P, kW	LA	LB	LC	LE	BA	BB	BC	HA	HB	HC	a	Ds	Dd	Pump mass, kg	Unit mass, kg
11	1118	100	360	900	305	285	320	497	247	427	14	65	40	52	187

Flange Dimensions According to BSS EN 1092-2

DIMENSIONAL DRAWING OF THE PUMP UNIT

overall and mounting dimensions
