description drawings diagrams technical data:

FH/65-200

TECHNICAL PARAMETERS

n=2900 min^-1
Pump Type	Q l/s	H m	η %	P kW
FH/65-200	16,6	54	50	37
	28	50	62
	34,7	47	61

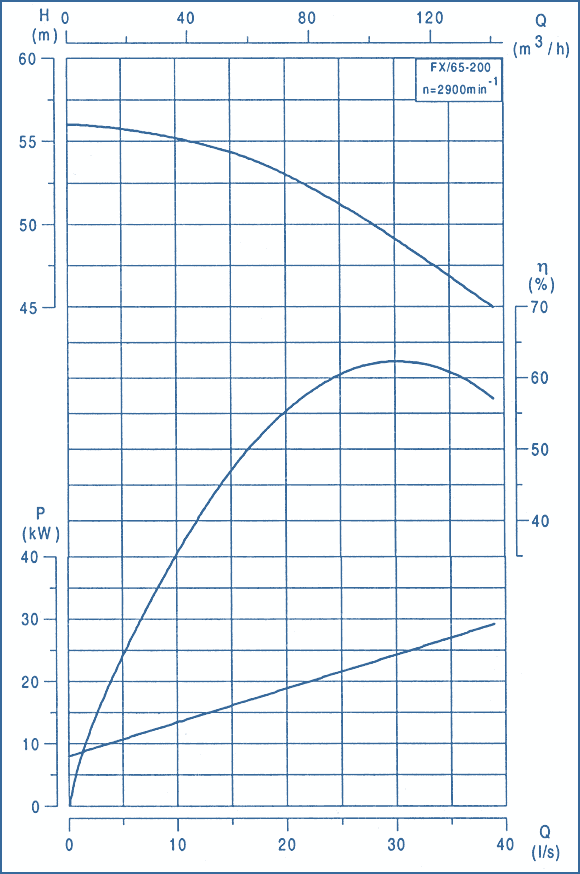

PERFORMANCE CURVES

performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

P, kW	LA	LB	LC	LE	BA	BB	BC	HA	HB	HC	a	Ds	Dd	Pump mass, kg	Unit mass, kg
37	1557	290	505	1135	390	375	410	682	371	632	16	100	65	74	367

Flange Dimensions According to BSS EN 1092-2

DIMENSIONAL DRAWING OF THE PUMP UNIT

overall and mounting dimensions
