description drawings diagrams technical data:

FH/50-200

TECHNICAL PARAMETERS

n=2900 min^-1
Pump Type	Q l/s	H m	η %	P kW
FH/50-200	11,1	46	40	22
	16,6	45	52
	30	40	60

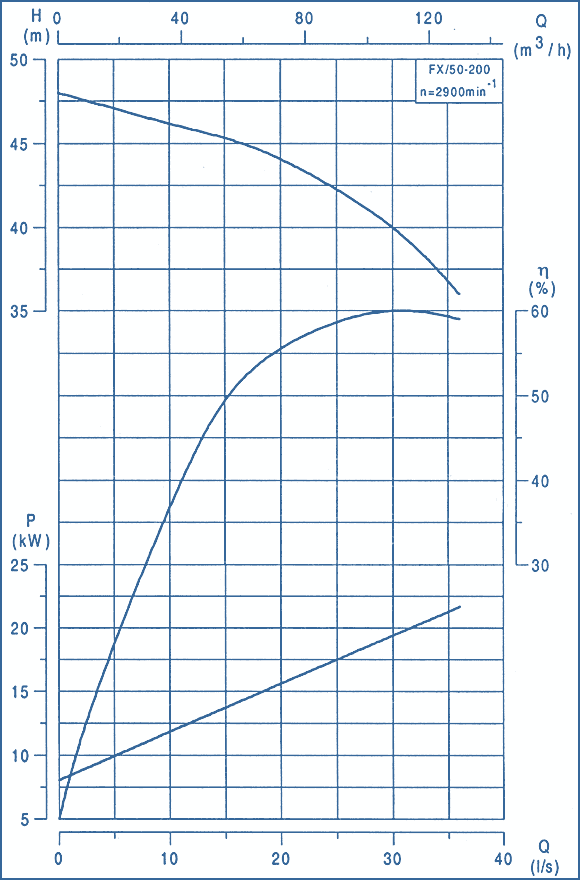

PERFORMANCE CURVES

performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

P, kW	LA	LB	LC	LE	BA	BB	BC	HA	HB	HC	a	Ds	Dd	Pump mass, kg	Unit mass, kg
22	1412	170	505	1090	346	325	380	610	340	590	16	80	50	54	210

Flange Dimensions According to BSS EN 1092-2

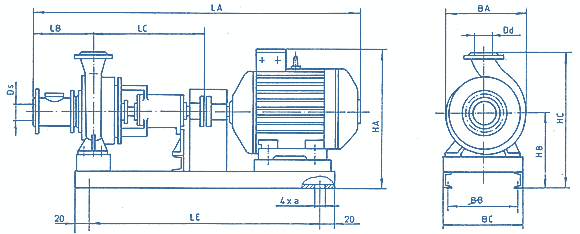

DIMENSIONAL DRAWING OF THE PUMP UNIT

overall and mounting dimensions
