description drawings diagrams technical data:

FVE/65-160A

TECHNICAL PARAMETERS

n=2900 min^-1
Pump Type	Q l/s	H m	η %	P kW	D2 mm
FVE/65-160A	13,8	24,5	57	11	144
	16,5	23	60
	22,2	18,5	56

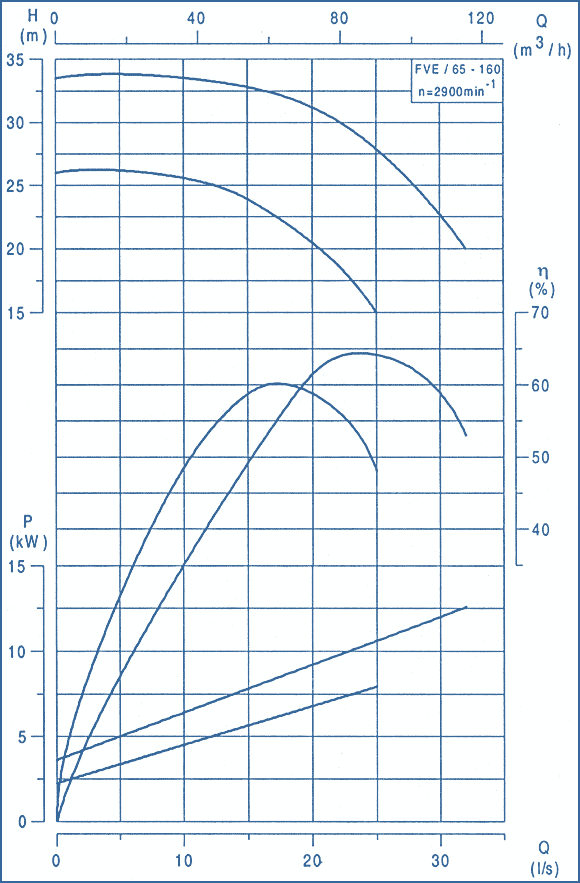

PERFORMANCE CURVES

performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

Pump Type	P, kW	LA	LB	LC	HA	HB	E	M	s	a	Ds	Dd	Pump mass, kg	Unit mass, kg
FVE/65-160A	11	1200	630	173	200	250	340	305	18	6	100	65	117	230

Flange Dimensions According to BSS EN 1092-2

DIMENSIONAL DRAWING OF THE PUMP UNIT

overall and mounting dimensions
