ET- A /40-200
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| ET- A /40-200 | 5,3 | 44 | 44 | 2,1 | 7,5 | 182 | 8,6 | 41 | 61 | 2,5 | 11,4 | 33 | 58 | 3,5 |

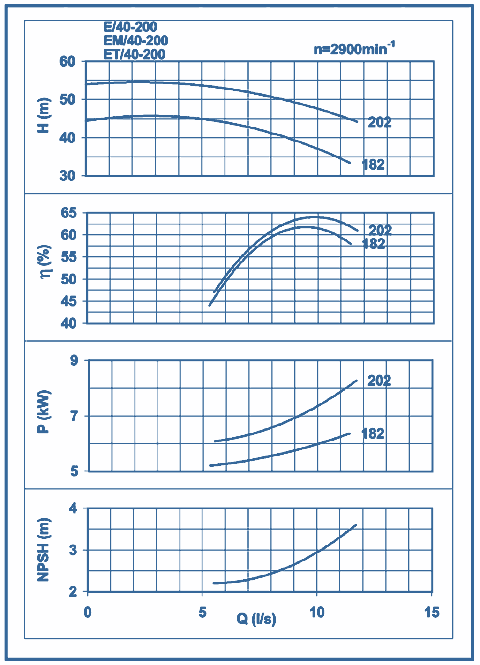

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITElectric Motor Type | Power, kW | LA | LB | LC | LD | LE | BA | BB | BC | HA | HB | HC | a | Ds | Dd | Pump mass, kg | Unit mass, kg | 132S | 7,5 | 1010 | 100 | 360 | 100 | 895 | 257 | 280 | 316 | 457 | 276 | 456 | 16 | 65 | 40 | 50 | 124 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
