FVE/40-160
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | P
kW | D2
mm |
| FVE/40-160 | 8,8 | 36 | 51 | 11 | 170 | 11,1 | 32,5 | 54 | 13,8 | 26 | 50 |

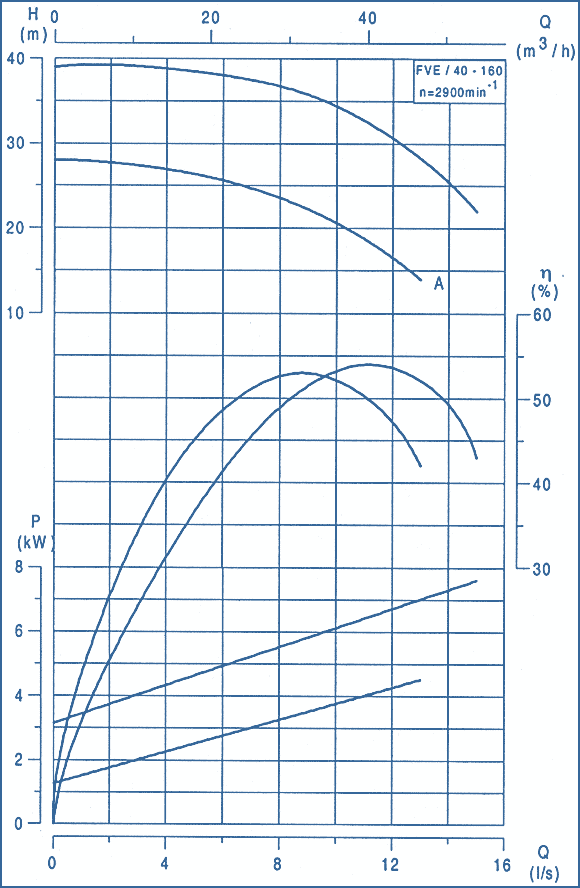

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | P, kW | LA | LB | LC | HA | HB | E | M | s | a | Ds | Dd | Pump mass, kg | Unit mass, kg | FVE/40-160 | 11 | 145 | 583 | 171 | 195 | 235 | 340 | 305 | 18 | 6 | 65 | 40 | 110 | 220 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
