Vipom's pumps
pumps


K/80-315



TECHNICAL PARAMETERS
n=2900 min-1
Pump TypeQ
l/s

H
m

η
%
NPSH
m

kWD2
mm
K/80-315

30,5

106

65

4,5

75

280

44,5

100

75

5

52,8

92

65

6

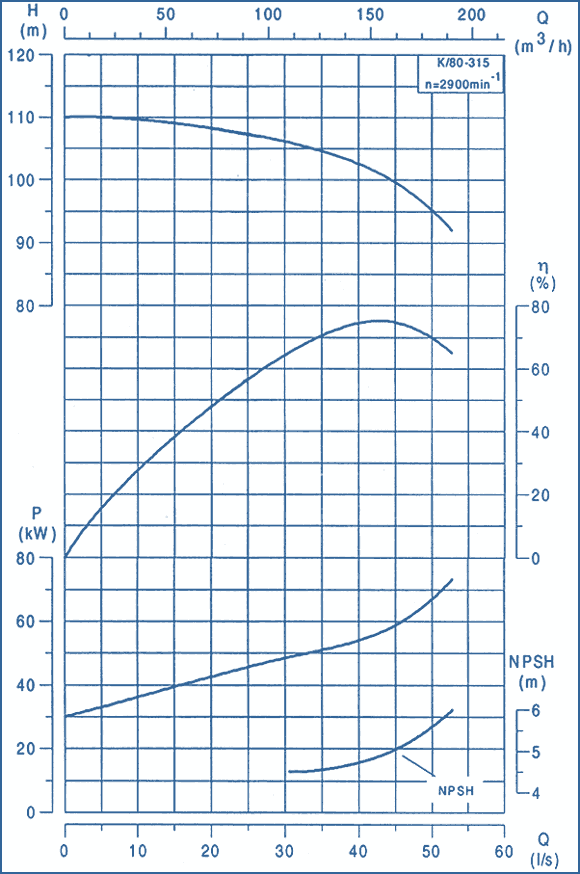

PERFORMANCE CURVES
performance curves


OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

Pump Type

Power, kW

LA

LB

LC

HA

HB

E

M

S

Unit mass, kg

K-/80-315

75

1735

885

240

315

400

600

540

22

798




DIMENSIONAL DRAWING OF THE PUMP UNIT
overall and mounting dimensions

Flange Dimensions
overall and mounting dimensions
