K/80-160
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| K/80-160 | 30,5 | 34 | 68 | 4 | 22 | 175 | 44,5 | 30 | 77 | 4,5 | 52,8 | 23 | 74 | 6,5 |

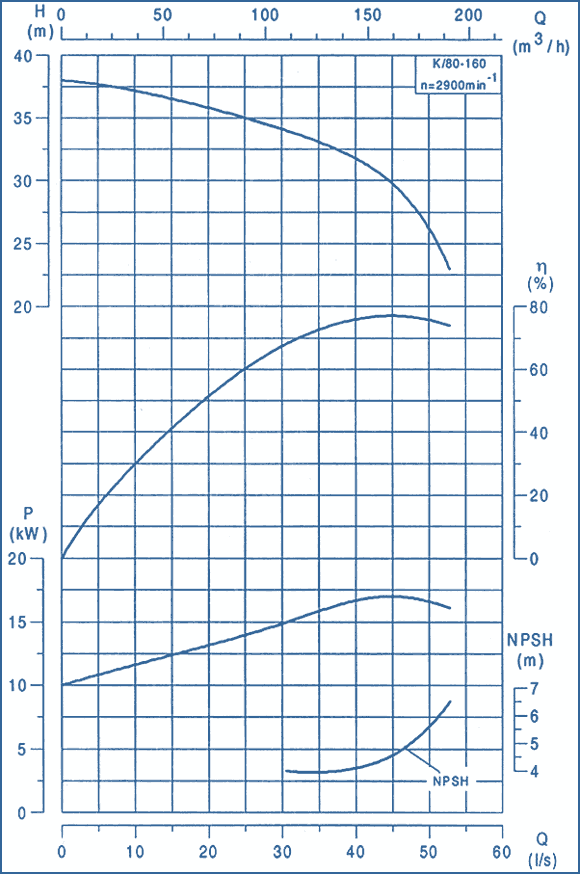

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | Power, kW | LA | LB | LC | HA | HB | E | M | S | Unit mass, kg | K/80-160 | 22 | 1290 | 687 | 202 | 225 | 280 | 400 | 365 | 18 | 337 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
Flange Dimensions
|
|
