K/65-315
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| K/65-315 | 19,5 | 104 | 57 | 3,5 | 55 | 280 | 27,8 | 100 | 65 | 4 | 33,4 | 95 | 65 | 5,5 |

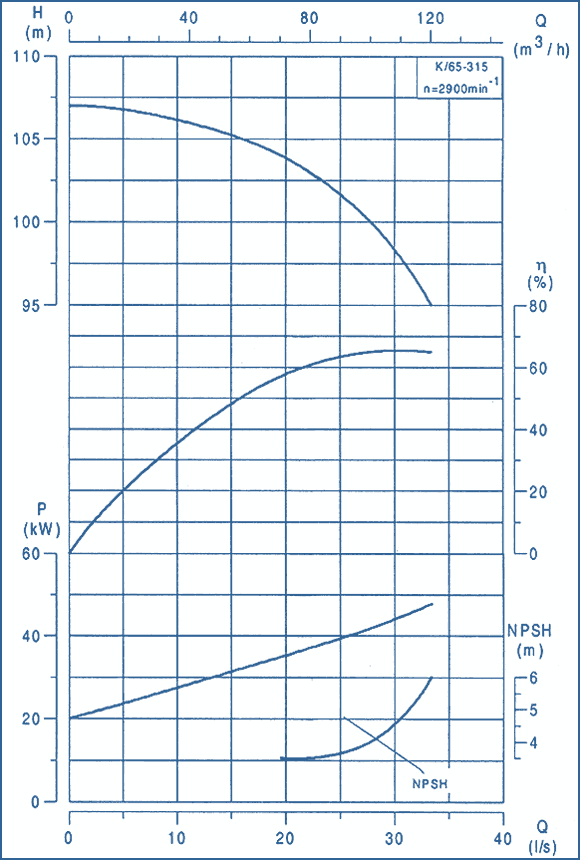

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | Power, kW | LA | LB | LC | HA | HB | E | M | S | Unit mass, kg | K/65-315 | 55 | 1537 | 830 | 214 | 280 | 350 | 600 | 540 | 22 | 607 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
Flange Dimensions
|
|
