K-A/50-250
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| K-A/50-250 | 6,95 | 81 | 40 | 2,5 | 22 | 250 | 11,1 | 80 | 51 | 3 | 17,5 | 75 | 58 | 4 |

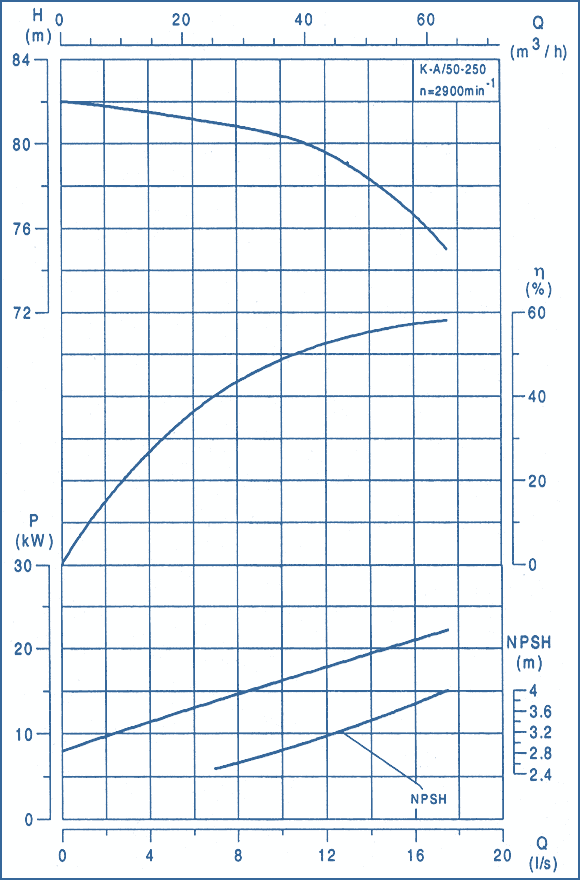

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | Power, kW | LA | LB | LC | HA | HB | E | M | S | Unit mass, kg | K-A/50-250 | 22 | 1310 | 675 | 243 | 275 | 250 | 430 | 390 | 22 | 239 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
Flange Dimensions
|
|
