K/50-250
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| K/50-250 | 11,1 | 83 | 50 | 3 | 30 | 260 | 17,5 | 80 | 61 | 4 | 22,2 | 70 | 58 | 5 |

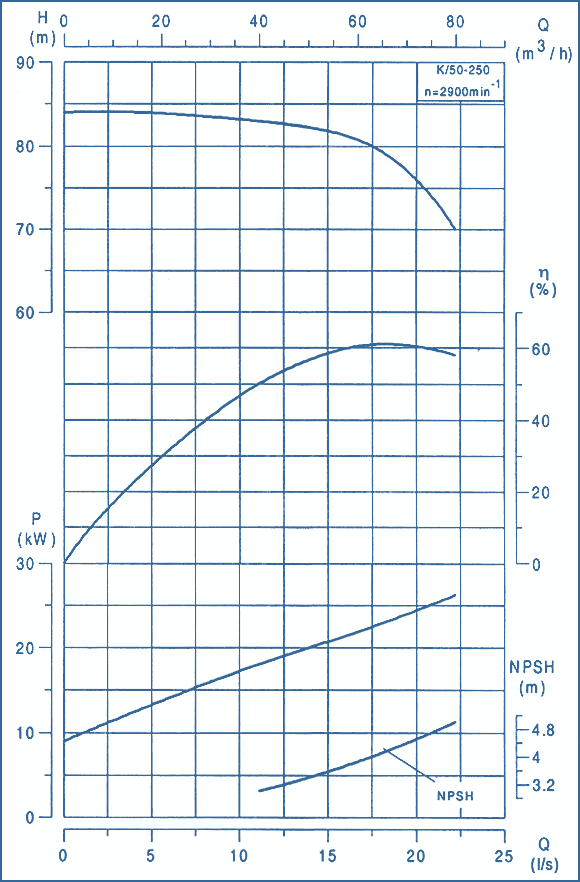

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | Power, kW | LA | LB | LC | HA | HB | E | M | S | Unit mass, kg | K/50-250 | 30 | 1375 | 675 | 243 | 275 | 250 | 730 | 390 | 22 | 358 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
Flange Dimensions
|
|
