K-A/50-160
TECHNICAL PARAMETERS
| n=2900 min-1 |
| Pump Type | Q
l/s | H
m | η
% | NPSH
m | kW | D2
mm |
| K-A/50-160 | 6,95 | 32 | 48 | 2,5 | 7,5 | 166 | 11,1 | 30 | 62 | 3 | 16,7 | 25 | 66 | 3,5 |

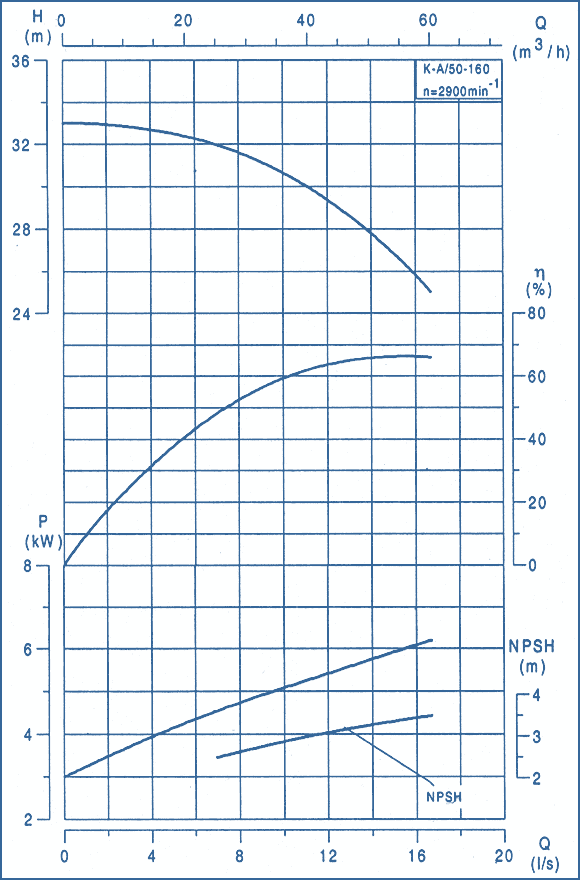

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | Power, kW | LA | LB | LC | HA | HB | E | M | S | Unit mass, kg | K-A/50-160 | 7,5 | 966 | 578 | 180 | 195 | 235 | 340 | 305 | 18 | 175 |

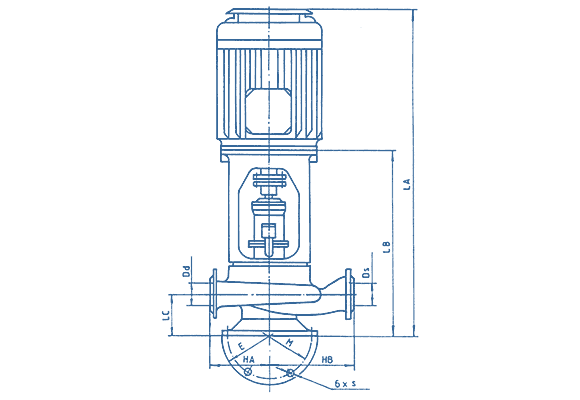

DIMENSIONAL DRAWING OF THE PUMP UNIT

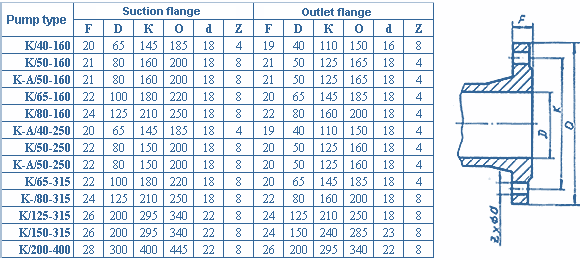

Flange Dimensions
|
|
